Cone Crusher Liners

Overview

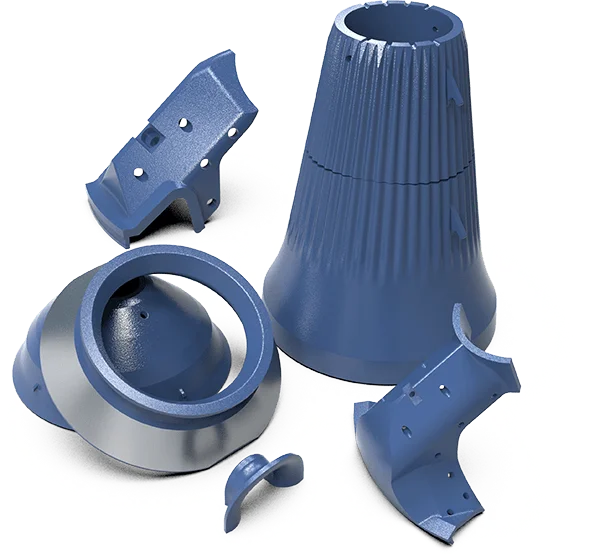

Browse replacement mantles and bowl liners for cone crushers. The mantle is the moving crushing surface; the bowl liner, also called a concave, forms the stationary surface opposite it. Order against the complete reference and installed chamber configuration.

Find a part

Material and specification

Confirm the required material grade with the liner reference and operating conditions. Feed material, feed grading and the required product size help describe the application. A manganese percentage alone does not establish service life or a suitable chamber profile.

Parts in this category

Mantles: identify the moving liner and its chamber profile.
Bowl liners or concaves: identify the stationary liner and its matching mantle.

A mantle and a concave are separate components. For a liner set, provide both references or ask for the pairing to be checked. State whether retaining or support parts are also required; a liner reference does not define a complete installation kit.

Identify the correct part

Use the product listings to check the stated model and public reference number. Include every suffix and leading zero. A similar number or the same machine model does not establish interchangeability.

For a repair order or replenishment list, send one line per reference with the required quantity. Identify any parts that need to be quoted together. The quotation confirms the supply scope and delivery terms.

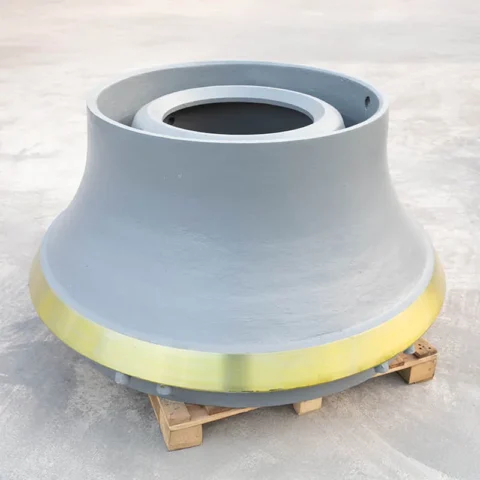

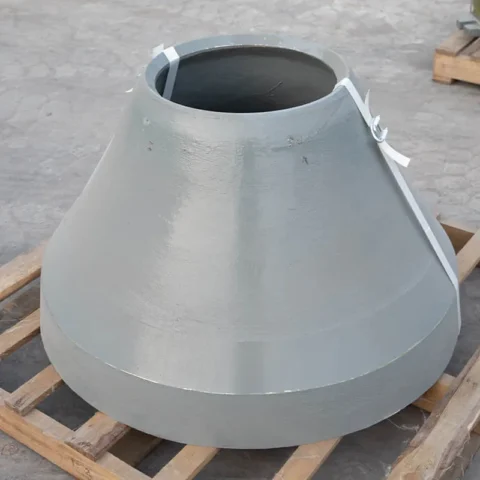

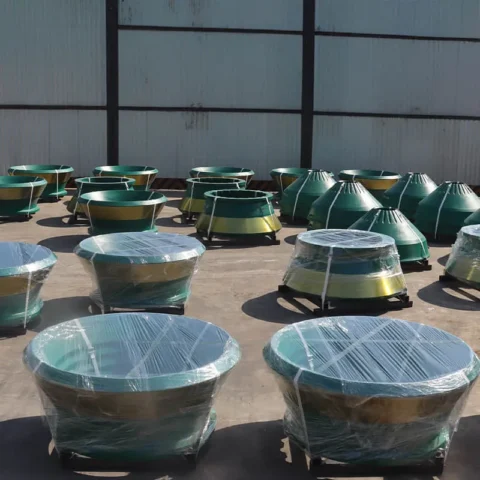

Examples from the product catalogue

GUBT is an independent aftermarket supplier. Brand names and model designations identify the intended application; they do not imply approval by or affiliation with the original manufacturer.

Terms used on product pages

Chamber profile: the geometry of the mantle and concave installed as a pair.
Complete reference: the part number including any suffix identifying a variant.
