Cone Crusher Bushings, Shafts and Head Support Parts

Plan an HP300 rebuild by separating the drive, eccentric and head components on your parts list. This directory brings together GUBT aftermarket HP300 bushings, shafts, support parts and assemblies so you can check each reference and request the scope you actually need.

Request several parts

Find the part by reference and position

Wear liners

Drive components

Eccentric and thrust components

Head and support components

Identification notes

The countershaft bushing belongs in the drive housing. The eccentric bushing, upper and lower head bushings, and thrust components occupy different positions. Describe the position as well as the reference when several bushings appear on one repair list.

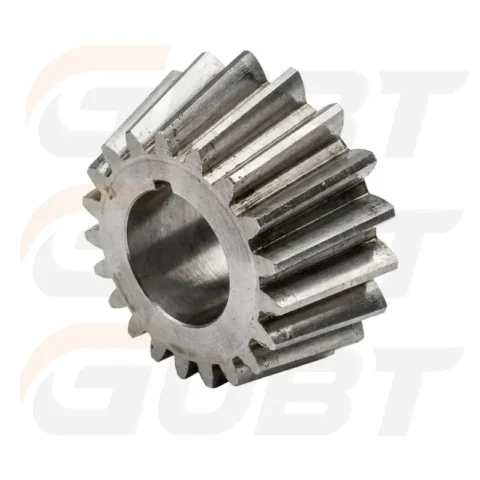

For the drive, distinguish countershaft 1068633366 from housing 7023408201 and cover 7035912253. Pinion 1036833868 should be identified alongside the mating gear and the installed countershaft arrangement. These are separate order positions; listing them together does not establish an interchangeable set.

Compare the requested scope

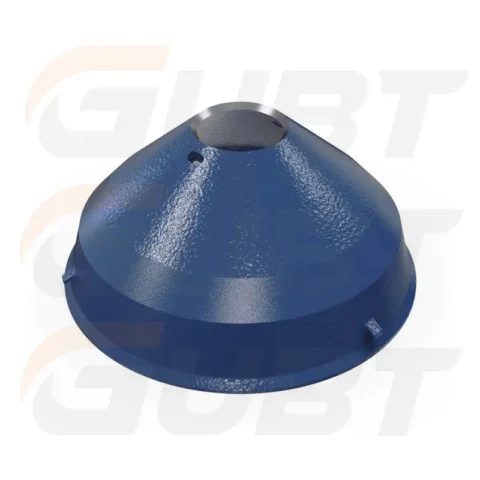

Head assembly 7090058000 and gear and eccentric assembly 7090228208 need an agreed component list. State which bushings and support parts are required and ask for exclusions to be shown. A head assembly enquiry should also make clear whether a mantle is required.

Upper head bushing 7015656200 and lower head bushing 1022145975 have different positions. Head ball 7024950500 and socket liner 7035800600 are separate parts of the spherical support. For a repair involving these components, send the existing references and identify the mating surfaces for review.

What should the quotation include?

Ask for each included component to appear on the quotation. Confirm seals, fasteners and other neighbouring parts separately when they are needed. Material requirements, inspection documents, packing and the dispatch schedule should be agreed for the actual order.

Prepare a parts enquiry

For one part, open its product page and use the enquiry button. For a repair list or a stock order, use the multi-part enquiry and paste one reference, model and quantity per line. Keep suffixes, hyphens and leading zeros exactly as written in your parts records. You can include references that are not shown in this directory.

Add the delivery country and state whether you are repeating an accepted specification or checking a different machine configuration. If identification is incomplete, describe the missing information and tell us which photos or machine records you can provide. GUBT will need to agree the offered parts and supply scope with you before the order is confirmed.

Chengdu GUBT Industry Co., Ltd. supplies independent aftermarket parts. Metso and the model names on this page identify the equipment; they do not imply manufacturer endorsement.

Selecting bushings, shafts and head parts for a rebuild

Rebuild parts fail on identification more often than on price. Two bushings in the same machine can share a similar shape but sit in different positions — drive, eccentric and head — with different mating surfaces. For each line on a repair list, record the position in words, the complete reference exactly as it appears in your records, and the quantity. Where a suffix, hyphen or leading zero differs, keep it; small differences can separate otherwise similar parts.

Materials, machining and fit

Bushings, shafts and spherical support parts depend on correct material, surface condition and machined dimensions. Ask, for the actual order, which material applies to each part, which mating faces are machined, and which dimensions or clearances will be inspected and recorded. On arrival, compare the markings and agreed dimensions against the quotation before the machine is opened up, and keep that record with the maintenance file so a repeat order starts from an accepted part.

Wear, life and what to watch

These are support and drive components rather than crushing surfaces, so their service life follows lubrication, alignment, condition of the mating parts and the state of seals and thrust surfaces. Replacing one worn component against a worn mate can shorten the life of both. Note what the inspection found — scoring, clearance change, overheating marks — and share it with the enquiry; it helps the supplier flag related positions that should be checked in the same shutdown.

Delivery and order quantity — general notes

Lead time depends on whether the part is cast, forged or mainly machined, and on the agreed inspection and packing. There is no single minimum quantity across these parts: a single repair piece and a planned stock order are quoted on their own basis. Send the list early where a shutdown date is fixed, and have the supply scope, exclusions and dispatch arrangement confirmed in writing.

GUBT supplies independent aftermarket replacement parts. Any reference numbers or equipment names shared for identification are used only to check compatibility. They do not imply affiliation with, or endorsement by, the original equipment manufacturer.

Frequently asked questions

How do I make sure a bushing or shaft part fits my machine?

Identify the part by position as well as reference: countershaft, eccentric, head and thrust positions use different components that can look similar on a list. Add the equipment model and version, the complete reference, and photos or measurements of the mating part where identification is uncertain, and ask the supplier to confirm the position before quoting.

Should seals and fasteners be ordered with the main part?

Do not assume they are included. A bushing, shaft or assembly quotation covers only what is listed. Name the seals, fasteners or neighbouring parts you also need, and ask for the included scope and any exclusions to be shown line by line.

What material and inspection details should I confirm?

For bushings, shafts and support parts, ask which material and heat or surface treatment apply, which mating dimensions and clearances will be inspected, and what record will be supplied. Agree those points for the individual order; a general catalogue statement cannot confirm the fit of a specific repair part.

Can I send a whole repair list instead of single parts?

Yes — a combined list is often clearer for rebuild work. Put one reference, position and quantity per line, state the delivery destination, and note anything you are unsure about. That lets the supplier quote the agreed scope as one job and flag any line that needs more identification.

What affects lead time and minimum quantity for these parts?

Cast, forged and machined parts follow different routes, and assemblies need their component scope agreed first. A single repair part and a stock order are therefore quoted separately. Ask for lead time, inspection scope and packing to be confirmed in writing for your list.
