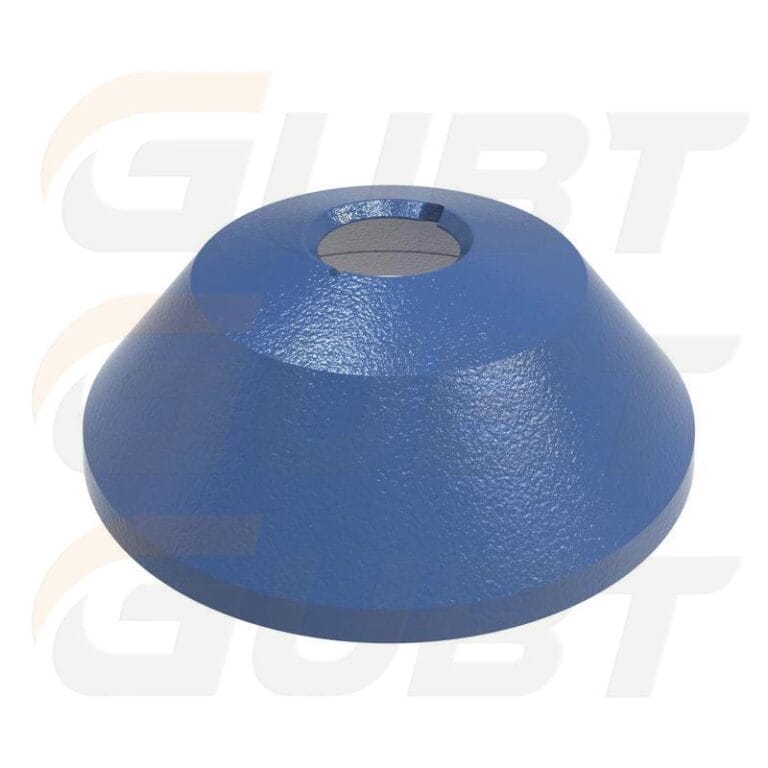

Mantle 06000-300-02 for Terex MVP550

06000-300-02 is a mantle reference for the Cedarapids MVP550 cone crusher in the Terex range. Chengdu GUBT Industry Co., Ltd. supplies replacement mantles for this application, with the required chamber configuration confirmed before ordering.

What this mantle does

The mantle forms the moving inner wear surface of the crushing chamber and protects the cone head. It works opposite the outer bowl liner, also called the concave. A mantle and a bowl liner are separate wear parts; their profiles must be considered together when selecting a replacement set.

Fine and extra-fine chamber references

The following MVP550 configurations use mantle reference 06000-300-02:

• Fine chamber: mantle 06000-300-02 with bowl liner reference 06000-300-06.
• Extra-fine chamber: mantle 06000-300-02 with bowl liner reference 06000-300-07.

These are configuration references, not confirmation that a bowl liner is included with this mantle. Check the installed liner reference and the machine configuration before ordering; the model name alone does not identify the complete chamber combination.

Information to include in your enquiry

• Part identification: reference 06000-300-02, the crusher model and machine serial number.
• Chamber configuration: fine or extra-fine, plus the current bowl liner reference if known.
• Application: material being crushed, feed size and grading, and the required finished product.
• Supply request: quantity, delivery destination, and whether you need the mantle alone or a quoted mantle-and-liner set.

A clear photo of the existing part marking can help resolve an uncertain reference. Please remove unrelated customer or order information from attachments. Material specification, finished weight, supply scope and delivery terms should be confirmed in the quotation for your requirement.

Request a quotation for 06000-300-02

Use the product enquiry button to send this reference and your equipment details to GUBT. If the chamber type is unknown, include the information you have so that the required configuration can be checked before an order is agreed.

GUBT is an independent replacement-parts supplier. Terex and Cedarapids names and reference numbers are used to identify the intended equipment application; this is not an OEM-branded product.
