A cone-liner supplier may be able to cast manganese steel and still need more information before proposing the right mantle or bowl liner. The chamber profile, mounting geometry and machine revision define the part. A capability brochure is useful background; for an order, ask what the supplier has checked against the specific liner you intend to replace.
Name the chamber and liner position
The primary challenge in sourcing liners involves the specific chamber profile, which must match the feed size and material properties of the application. A reference number identifies a part shape but does not confirm that the geometry suits the current closed-side setting or the operating history of the crusher. Before ordering, verify the chamber configuration against the machine serial number and the original manual. Relying solely on a part number ignores how the mantle and bowl liner pair together to create the crushing gap. Request confirmation that the supplied profile aligns with the existing feed characteristics.
Separate fit evidence from company capability

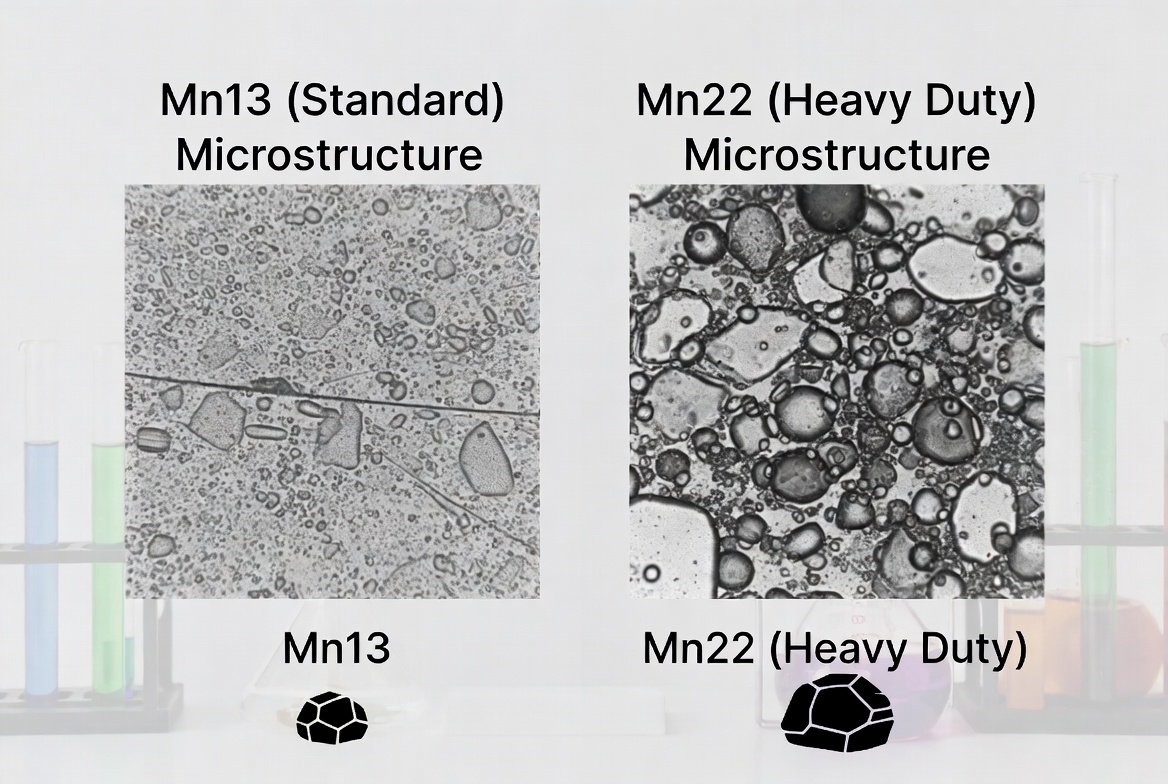

A common error involves conflating material specifications with dimensional accuracy. Manganese designations describe the alloy composition but provide no data regarding the fit-critical dimensions of the casting. When reviewing a quotation, distinguish between documentation that confirms the chemical analysis of the steel and evidence that the part dimensions match the required tolerances for the specific crusher model. Ask for the specific heat treatment records and dimensional inspection reports for the batch. These documents prove the manufacturing process was followed, but they do not replace the need to verify the fit against the OEM manual.
Ask what inspection covers
To validate a potential supply, request specific technical documentation rather than general brochures. Ask for the casting drawings that highlight the fit-critical dimensions, such as the mantle bore diameter and the bowl liner seating surface. Request the heat treatment logs that show the temperature cycles applied to the manganese steel. If the supplier cannot provide these specific records, ask for a cross-reference report that details how the part dimensions were measured against the original design specifications. This evidence allows for a technical assessment of the casting quality before the parts arrive at the site.
Check the order on receipt
Upon delivery, the inspection process should focus on the physical condition and dimensional accuracy of the liners. Check the seating surfaces for any casting defects or irregularities that could prevent a proper fit against the crusher frame. Verify that the mantle and bowl liner match the ordered chamber profile, as mixing profiles can lead to uneven wear or mechanical failure. Use the OEM manual to identify the specific wear limits and installation clearances. If the parts do not align with these established parameters, document the discrepancies immediately and consult the technical specifications provided during the initial quotation phase.
What to send a cone-liner supplier
Send the model, serial or revision information available, cavity designation, part position and full public reference. If the existing machine has been modified, include that fact and authorized measurements or drawings. State requested material and whether the order covers mantle, bowl liner or both. Ask the supplier to describe the geometry and inspection basis for any substitute. Confirm handling and installation requirements against the exact equipment manual before the maintenance shutdown.
