HSI Crusher Liners
Overview
Horizontal Shaft Impactor (HSI) crushers utilize a high-speed rotating rotor with impact elements to break down material by collision. The material is accelerated by the rotor and impacted against replaceable metal surfaces such as HSI crusher liners, impact plates, and breaker plates, resulting in a high reduction ratio and producing a cubic-shaped final product.
Impact velocities in HSI crushers typically range from 30 to 80 m/s, much higher than compression crushing, enabling efficient material reduction but also causing significant wear on critical components. Therefore, selecting the correct wear parts from a reliable HSI crusher liners manufacturer or supplier is essential to ensure optimal crusher performance and long-term operational reliability.
As an experienced HSI crusher liners exporter and factory, we provide custom HSI liners, impact plates, and breaker plates designed to match different material characteristics, including abrasiveness, feed size, and the presence of foreign objects. Proper wear part selection not only improves crushing efficiency but also reduces downtime and maintenance costs while achieving the desired product size.
Materials
Wear parts for HSI crushers are manufactured from a range of engineered materials to achieve the optimal balance between wear resistance and impact toughness. As an experienced HSI crusher liners manufacturer and supplier, we select and customize materials based on specific crushing conditions to maximize performance and service life:
- Manganese Steel: Offers superior impact resistance and excellent work-hardening properties. It is ideal for large feed sizes, high-impact conditions, and applications where unbreakable objects may be present. Widely used in HSI crusher liners and impact plates, this material ensures durability under severe operating environments.
- Martensitic Steel: Provides an excellent combination of hardness and toughness. It is commonly used in applications requiring improved wear resistance compared to manganese steel, especially when processing moderately abrasive materials. Suitable for customers seeking a balance between performance and cost.
- High Chrome Steel (White Cast Iron): Delivers high hardness and outstanding wear resistance in low-impact, high-abrasion environments. This material is often used in HSI impact plates and breaker plates where maximum wear life is required. However, it is not recommended for feeds containing metallic contaminants or large unbreakable objects due to its brittleness.
- Composite Materials with Ceramic Inserts: Combine a metal matrix with embedded ceramic particles to significantly increase wear resistance in highly abrasive applications. These custom HSI liners offer extended service life while maintaining structural integrity, making them ideal for demanding crushing operations.
Wear Parts Categories

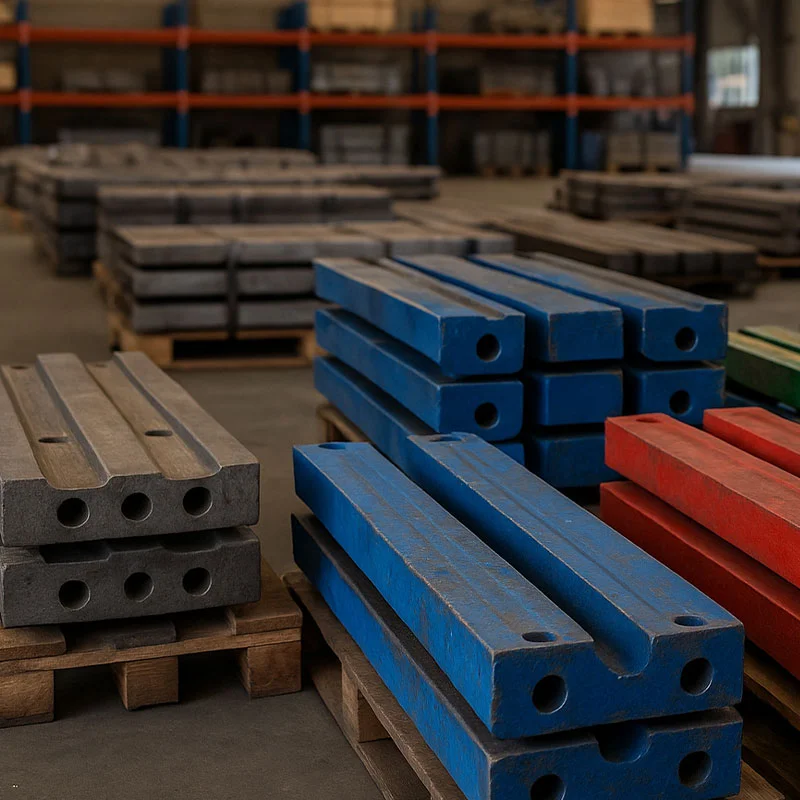

- Blow Bars: The primary impact components mounted in the rotor, directly striking and breaking the material. Blow bars are subject to the highest impact and abrasion. Their shape, material, and mounting method influence wear patterns and crusher efficiency.
- Breaker Plates / Liners: Fixed impact surfaces inside the crushing chamber, against which material is thrown and further reduced. Breaker plates are fitted with replaceable liners to extend operational life.
- Apron Liners: Positioned in primary and secondary crushing zones, these liners help control product size and provide overload protection.
- Side Liners (Frame Liners): Protect the side walls of the crushing chamber and mainframe from wear and abrasion.
- Other Wear Parts: Depending on application, may include feed liners, discharge lips, or other protective elements within the crushing system.
